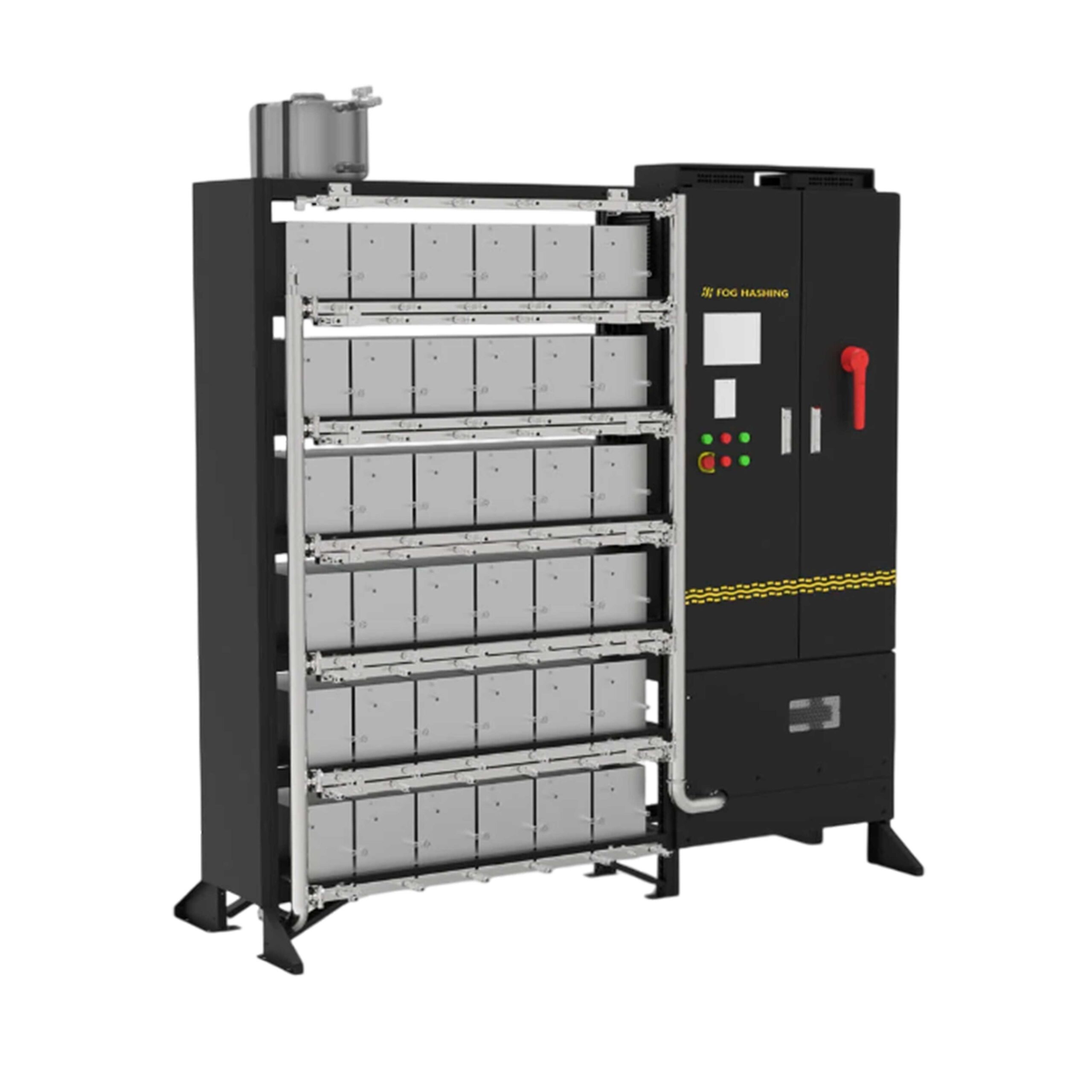

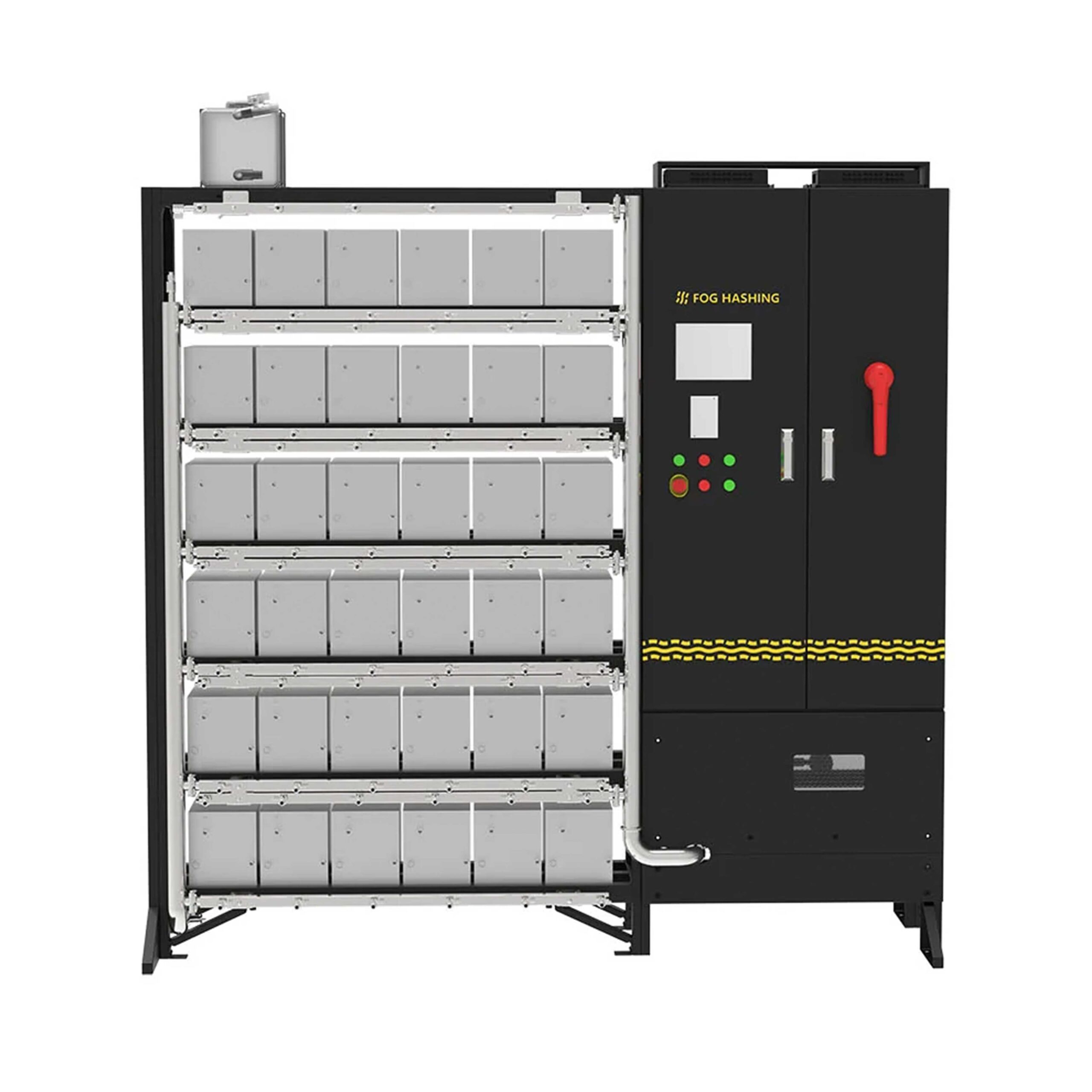

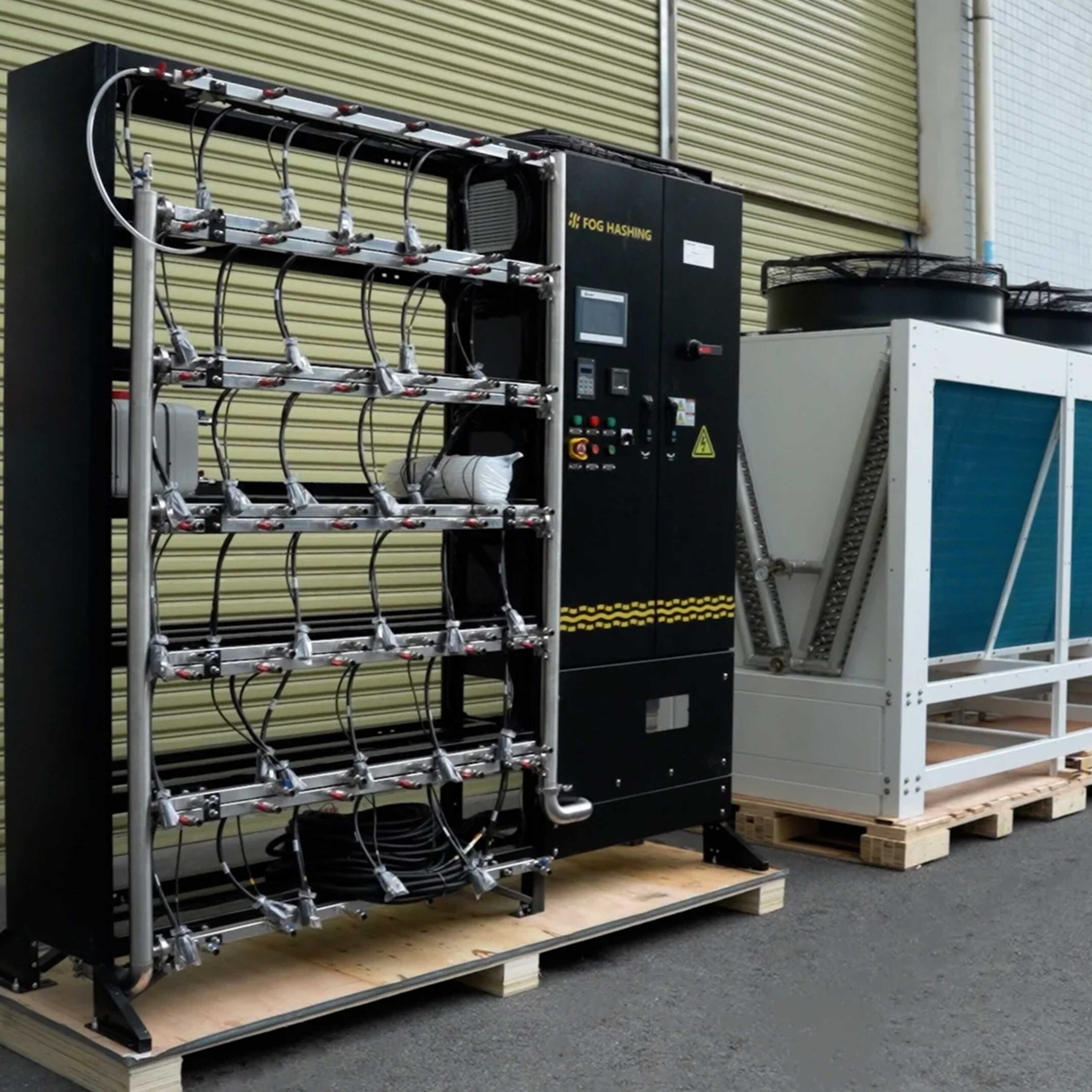

Fog Hashing H200-S Hydro Cooling Rack is designed for Antminer S19 Hyd, Antminer S21 Hyd, Antminer S23 Hyd and supports up to 36 units.
FogHashing H200 series is a Hydro Cooling equipment specifically designed for Bitcoin mining. Whether you are a professional miner or a beginner, Hydro Cooling Solution is the ideal choice to enhance mining efficiency.
Fog Hashing H200-S Hydro Cooling Rack Specifications:
H200-S RACK
| Size | 1550mm(W)2200mm(H)400mm(D) |
| System Power Load (MAX) | 226kW |
| Miner Capacity | 36 * S19/S21/S23 Hydro |
| Input Voltage | 3-Phase 380V-415V, 50/60Hz |
| PDU | PDC/PDU |
| Network | 1000M Network Switch*2 |
| Operation Temperature | -25 ~ 35℃ |
| Operating Humidity | 5%~95%RH |
| Water Manifold | Stainless Steel |
| Hose | PE/PTFE Hose + Quick Connects |
H200-S CDU
| Size | 800mm(W)2100mm(H)1000mm(D) |
| Cooling Capacity | 200kW |
| Power | 3.5kW |
| Input Voltage | 3-Phase 380V-480V, 50/60Hz |
| Cooling Medium | Pure water/Soften water+Antifreeze+Corrosion Inhibitor |
| Inlet/Outlet | 10°C (Normal) 14°C (High Performance) |
| Rated Flow Rate | 20m³/h |
| Operating Temperature | -25℃~45℃ |
| Operating Humidity | 5%~95%RH |
| PLC System | Constant flow control with pressure regulation |
| Communication Method | Modbus-RTU,TCP/IP |
| Design Pressure | 0.3MPa |
H200-S Dry Cooler
| Model | FHWDC200 |
| Module | Dry Cooler V Type |
| Cooling Capacity | 200kW |
| Wight(Empty Load) | 800KG |
| FANs | 2 |
| Connection | DN50 |
| Fluid | Coolant |
| Fluid flowrate | 20m³/h |
| Inlet/Outlet Temperature | 55℃/40℃ |
| Ambient temperature | 35℃ |
| Fin/Tube Materials | 304 Stainless steel，Al-mg/AI |
| Operating/Maximum Pressure | 0.3MPA/1.6MPA |
